HUBBELL
|
PRESSURE SWITCH
|
69JG6
|
HUBBELL
|
PRESSURE SWITCH
|
69JG6L
|
HUBBELL
|
PRESSURE SWITCH
|
69JG6LY
|
HUBBELL
|
PRESSURE SWITCH
|
69JG6LY2C
|
HUBBELL
|
PRESSURE SWITCH
|
69JG6Y
|
HUBBELL
|
PRESSURE SWITCH
|
69JG7
|
HUBBELL
|
PRESSURE SWITCH
|
69JG7L
|
HUBBELL
|
PRESSURE SWITCH
|
69JG7LY
|
HUBBELL
|
PRESSURE SWITCH
|
69JG7LY2C
|
HUBBELL
|
PRESSURE SWITCH
|
69JG7Y
|
HUBBELL
|
PRESSURE SWITCH
|
69JG8
|
HUBBELL
|
PRESSURE SWITCH
|
69JG8L
|
HUBBELL
|
PRESSURE SWITCH
|
69JG8LY
|
HUBBELL
|
PRESSURE SWITCH
|
69JG8LY2C
|
HUBBELL
|
PRESSURE SWITCH
|
69JG8Y
|
HUBBELL
|
PRESSURE SWITCH
|
69JG9
|
HUBBELL
|
PRESSURE SWITCH
|
69JG9L
|
HUBBELL
|
PRESSURE SWITCH
|
69JG9LY
|
HUBBELL
|
PRESSURE SWITCH
|
69JG9LY2C
|
HUBBELL
|
PRESSURE SWITCH
|
69JG9Y
|
AIR COMPRESSOR
PRESSURE SWITCHES:
CALL: 214-428-2868
WE HAVE MOST PRESSURE SWITCHES IN
STOCK FOR MOST COMPRESSOR MODELS.
ATLAS
COPCO PRESSURE SWITCHES
QUINCY
PRESSURE SWITCHES
CURTIS
PRESSURE SWITCHES
CHAMPION
PRESSURE SWITCHES
INGERSOLL
RAND PRESSURE SWITCHES
214-428-2868
| Model | Cut-In | Cut-Out | List |
| Number | (PSI) | (PSI) | Price |
| Pressure Switches - Air | |||
| 69MB6 | 80 | 100 | $79.95 |
| 69JF6 | 80 | 100 | $79.95 |
| 69MB6L | 80 | 100 | $79.95 |
| 69MB6LY | 80 | 100 | $79.95 |
| 69JF6LY | 80 | 100 | $79.95 |
| 69MB6LY2C | 80 | 100 | $79.95 |
| 69MB6Y | 80 | 100 | $79.95 |
| 69MB6YZ30-50 | 30 | 50 | $79.95 |
| 69JF6Y | 80 | 100 | $79.95 |
| 69MB7 | 95 | 125 | $79.95 |
| 69JF7 | 95 | 125 | $79.95 |
| 69MB7L | 95 | 125 | $79.95 |
| 69JF7L | 95 | 125 | $79.95 |
| 69MB7LY | 95 | 125 | $79.95 |
| 69JF7LY | 95 | 125 | $79.95 |
| 69MB7LY2A | 95 | 125 | $79.95 |
| 69JF7LY2A | 95 | 125 | $79.95 |
| 69MB7LY2C | 95 | 125 | $79.95 |
| 69JF7LY2C | 95 | 125 | $79.95 |
| 69MB7Y | 95 | 125 | $79.95 |
| 69JF7Y | 95 | 125 | $79.95 |
| 69MB7Y2C | 95 | 125 | $79.95 |
| 69MB8 | 115 | 150 | $79.95 |
| 69JF8 | 115 | 150 | $79.95 |
| 69MB8L | 115 | 150 | $79.95 |
| 69MB8LY | 115 | 150 | $79.95 |
| 69JF8LY | 115 | 150 | $79.95 |
| 69MB8LY2C | 115 | 150 | $79.95 |
| 69JF8LY2C | 115 | 150 | $79.95 |
| 69MB8Y | 115 | 150 | $79.95 |
| 69JF8Y | 115 | 150 | $79.95 |
| 69MB8YZ140-175 | 140 | 175 | $79.95 |
| 69MB8Z140-175 | 140 | 175 | $79.95 |
| 69JF9 | 140 | 175 | $79.95 |
| 69JF92C | 140 | 175 | $79.95 |
| 69JF9LY | 140 | 175 | $79.95 |
| 69JF9LY2C | 140 | 175 | $79.95 |
| 69JF9Y | 140 | 175 | $79.95 |
| 69MC6 | 80 | 100 | $79.95 |
| 69JG6 | 80 | 100 | $79.95 |
| 69MC6L | 80 | 100 | $79.95 |
| 69MC6LY | 80 | 100 | $79.95 |
| 69JG6LY | 80 | 100 | $79.95 |
| 69MC6Y | 80 | 100 | $79.95 |
| 69JG6Y | 80 | 100 | $79.95 |
| 69MC7 | 95 | 125 | $79.95 |
| 69JG7 | 95 | 125 | $79.95 |
| 69MC7L | 95 | 125 | $79.95 |
| 69MC7LY | 95 | 125 | $79.95 |
| 69JG7LY | 95 | 125 | $79.95 |
| 69MC7LY2C | 95 | 125 | $79.95 |
| 69JG7LY2C | 95 | 125 | $79.95 |
| 69MC7Y | 95 | 125 | $79.95 |
| 69JG7Y | 95 | 125 | $79.95 |
| 69MC8 | 115 | 150 | $79.95 |
| 69JG8 | 115 | 150 | $79.95 |
| 69MC8L | 115 | 150 | $79.95 |
| 69MC8LY | 115 | 150 | $79.95 |
| 69JG8LY | 115 | 150 | $79.95 |
| 69MC8LY2C | 115 | 150 | $79.95 |
| 69JG8LY2C | 115 | 150 | $79.95 |
| 69MC8Y | 115 | 150 | $79.95 |
| 69JG8Y | 115 | 150 | $79.95 |
| 69JG9 | 140 | 175 | $79.95 |
| 69JG9LY | 140 | 175 | $79.95 |
| 69JG9LY2C | 140 | 175 | $79.95 |
| 69JG9Y | 140 | 175 | $79.95 |
| 69JG9Y2C | 140 | 175 | $79.95 |
| 69HA1 | 115 | 150 | $229 |
| 69HA12S | 115 | 150 | $229 |
| 69HA1Z140-175 | 140 | 175 | $229 |
| 69HAU1 | 115 | 150 | $229 |
| 69HAU12AZ140-175 | 140 | 175 | $229 |
| 69HAU1Z140-175 | 140 | 175 | $229 |
| 69HAU2 | 100 | 125 | $229 |
| 69HAU3 | 30 | 40 | $229 |
| 69HB1 | 115 | 150 | $229 |
| 69HBU1 | 115 | 150 | $229 |
| 69HB2 | 100 | 125 | $229 |
| 69HBU2 | 100 | 125 | $229 |
| 69HBU3 | 30 | 40 | $229 |

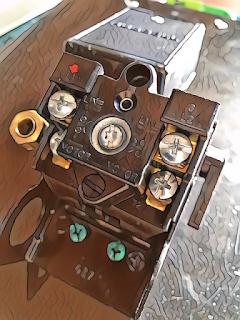

New Furnas Hubbell Siemens pressure switch
69JF9LY2C
AIR COMPRESSOR
PRESSURE SWITCHES:
CALL: 214-428-2868
1: Amps.. Amps.. Amps, is the number 1 factor in matching the correct switch for your application. Pressure switches will run from 12 volts through 600 Volts. Amps are the most important. If you ARE using a magnetic starter, any standard pressure switch will work fine with your application. The magnetic starter is taking 90+% of the load.
2: What pressure do you need the compressor to Cut in & Cut out at. Most pressure switches come 2 ways from the factory. 95-125 or 140-175. You can adjust the pressure by simply adjusting the screw.
3: The unloader is the smaller 1/8" fitting that comes out of the side of the pressure switch. It normally connects to the check valve that’s located in your tank through copper tubing.
4: Almost all pressure switches come 1 of 2 ways. Either Single Port connection or Four Port Connection. The Four port connection allows you the ability of connecting other accessory items to your pressure switch, example.. gauge, safety valve, regulator.
MOST POPULAR SWITCHES FOR YOUR COMPRESSOR
HUBBELL
|
PRESSURE SWITCH
|
69JF6
|
HUBBELL
|
PRESSURE SWITCH
|
69JF6L
|
HUBBELL
|
PRESSURE SWITCH
|
69JF6LY
|
HUBBELL
|
PRESSURE SWITCH
|
69JF6LY2C
|
HUBBELL
|
PRESSURE SWITCH
|
69JF6Y
|
HUBBELL
|
PRESSURE SWITCH
|
69JF7
|
HUBBELL
|
PRESSURE SWITCH
|
69JF7L
|
HUBBELL
|
PRESSURE SWITCH
|
69JF7LY
|
HUBBELL
|
PRESSURE SWITCH
|
69JF7LY2C
|
HUBBELL
|
PRESSURE SWITCH
|
69JF7Y
|
HUBBELL
|
PRESSURE SWITCH
|
69JF8
|
HUBBELL
|
PRESSURE SWITCH
|
69JF8L
|
HUBBELL
|
PRESSURE SWITCH
|
69JF8LY
|
HUBBELL
|
PRESSURE SWITCH
|
69JF8LY2C
|
HUBBELL
|
PRESSURE SWITCH
|
69JF8Y
|
HUBBELL
|
PRESSURE SWITCH
|
69JF9
|
HUBBELL
|
PRESSURE SWITCH
|
69JF9L
|
HUBBELL
|
PRESSURE SWITCH
|
69JF9LY
|
HUBBELL
|
PRESSURE SWITCH
|
69JF9LY2C
|
HUBBELL
|
PRESSURE SWITCH
|
69JF9Y
|
| HUBBELL | PRESSURE SWITCH | 69HA1 |
| HUBBELL | PRESSURE SWITCH | 69HA2 |
| HUBBELL | PRESSURE SWITCH | 69HA3 |
| HUBBELL | PRESSURE SWITCH | 69HAU1 |
| HUBBELL | PRESSURE SWITCH | 69HAU2 |
| HUBBELL | PRESSURE SWITCH | 69HAU3 |
| HUBBELL | PRESSURE SWITCH | 69HB1 |
| HUBBELL | PRESSURE SWITCH | 69HB2 |
| HUBBELL | PRESSURE SWITCH | 69HB3 |
| HUBBELL | PRESSURE SWITCH | 69HBU1 |
| HUBBELL | PRESSURE SWITCH | 69HBU2 |
| HUBBELL | PRESSURE SWITCH | 69HBU3 |
WE HAVE MOST PRESSURE SWITCHES IN
STOCK FOR MOST COMPRESSOR MODELS.
ATLAS
COPCO PRESSURE SWITCHES
QUINCY
PRESSURE SWITCHES
CURTIS
PRESSURE SWITCHES
CHAMPION
PRESSURE SWITCHES
INGERSOLL
RAND PRESSURE SWITCHES
214-428-2868
Application: Used to Regulate the Tank Pressure Between Two Preset Valves Up to 250 PSI
· UL Listed, CSA Certified, and CE Approved
· Designed for Demanding Requirements of Larger Heavy Duty Commercial Compressors
· Sturdy Painted Steel Case and Cover Resist Harsh Conditions
· 3/8" Female NPT Standard
· Rated for Both 50/60Hz Operation
Options :
· NEMA 3 Outdoor Weather Proof Enclosure
· NEMA 4 Watertight Enclosure
| Electrical Ratings | Horsepower | |||||
| Catalog | Control | 1 Phase | 3 Phase | DC | ||
| No. | Circuit | 120V | 240V | 240V | 480-600V | 32V-230V |
| 69JF | A600 | 1.5 | 2.0 | 3.0 | - | 1/4 |
| 69JG | A600 | 2.0 | 3.0 | 5.0 | 1 | 1/2 |
| NEMA 1 | ||||||
| Min. Close | Max. Open | Differential | Factory | |||
| General Purpose | ||||||
| Cut-In | Cut-Out | Range | Setting | |||
| Cat. No. | ||||||
| 60 psi | 110 psi | 15-25 psi | 80-100 | 69JF6 | ||
| 60 psi | 110 psi | 15-25 psi | 80-100 | 69JG6 | ||
| 50 psi | 145 psi | 25-33 psi | 95-125 | 69JF7 | ||
| 50 psi | 145 psi | 25-33 psi | 95-125 | 69JG7 | ||
| 90 psi | 165 psi | 25-38 psi | 115-150 | 69JF8 | ||
| 90 psi | 165 psi | 25-38 psi | 115-150 | 69JG8 | ||
| 100 psi | 175 psi | 30-40 psi | 145-175 | 69JF9 | ||
| 100 psi | 175 psi | 30-40 psi | 145-175 | 69JG9 |
| Min. | Max. | 1 Phase | 3 Phase | DC | |||||
| Factory | Differential | ||||||||
| Catalog No. | Close | Open | 480- | 32V- | |||||
| Setting | Range | 120V | 240V | 240V | |||||
| Cut-In | Cut-Out | 600V | 230V | ||||||
| 69HA1/HAU1 | 115-150 | 40 | 250 | 35-60 | 2.0 | 3.0 | 5.0 | 5.0 | 2.0 |
| 69HB1/HBU1 | 115-150 | 40 | 250 | 35-60 | 2.0 | 5.0 | 5.0 | 5.0 | 2.0 |
| 69HA2/HAU2 | 100-125 | 10 | 125 | 20-35 | 2.0 | 3.0 | 5.0 | 5.0 | 2.0 |
| 69HB2/HBU2 | 100-125 | 10 | 125 | 20-35 | 2.0 | 5.0 | 5.0 | 5.0 | 2.0 |
| 69HA3/HAU3 | 30-40 | 15 | 60 | 7-15 | 2.0 | 3.0 | 5.0 | 5.0 | 2.0 |
| 69HB3/HBU3 | 30-40 | 15 | 60 | 7-15 | 2.0 | 5.0 | 5.0 | 5.0 | 2.0 |
WE HAVE MOST PRESSURE SWITCHES IN
STOCK FOR MOST COMPRESSOR MODELS.
ATLAS
COPCO PRESSURE SWITCHES
QUINCY
PRESSURE SWITCHES
CURTIS
PRESSURE SWITCHES
CHAMPION
PRESSURE SWITCHES
INGERSOLL
RAND PRESSURE SWITCHES
214-428-2868
AIR COMPRESSOR
PRESSURE SWITCHES:
CALL: 214-428-2868
AIR COMPRESSOR
PRESSURE SWITCHES:
CALL: 214-428-2868
AIR COMPRESSOR
PRESSURE SWITCHES:
CALL: 214-428-2868
AIR COMPRESSOR
PRESSURE SWITCHES:
CALL: 214-428-2868
