CURTIS AIR COMPRESSOR PART NUMBERS:









WWW.HKAIRCOMPRESSORS.COM
214-428-2868






AIR COMPRESSOR SERVICE

COMPRESSOR PARTS

CALL FOR PRICES:

BALDOR MOTORS

WEG MOTORS

MARATHON MOTORS

214-428-2868

WE DROP SHIP ANYWHERE WITHIN THE USA.

CURTIS PUMPS

SERVICE KITS

CURTIS ML SERIES COMPRESSOR PARTS

AIR COMPRESSOR PUMP REPAIR

AIR COMPRESSOR MOTOR REPAIR

AIR COMPRESSOR DRYER

AIR COMPRESSOR DRYER SERVICE


214-428-2868

AIR COMPRESSOR PARTS

AIR COMPRESSOR OIL





 AIR COMPRESSOR SERVICE




CALL H&k PUMP FOR SALES AND SERVICE.  WE REBUILD ALL CURTIS COMPRESSOR PUMPS.  IN ADDITION, WE TYPICALLY KEEP MOST OF THE PARTS IN STOCK EITHER INSIDE OUR WAREHOUSE OR AT THE CORPORATE OFFICE.  WE DROP SHIP DIRECTLY TO YOU.

214-428-2868




CLIMATE CONTROL COMPRESSORS


Model HP Part No. Pump Tank Size Voltage CFM @ 80 PSI
3SA3 0.75 FCC34S06H3S-A1F1XX ES06 30 1/60/115V 2.1
3SA3 0.75 FCC34S06H3S-A2F1XX ES06 30 1/60/230V 2.1
3SA3 0.75 FCC34S06H3S-A3F1XX ES06 30 3/60/230V 2.1
3SA3 0.75 FCC34S06H3S-A4F1XX ES06 30 3/60/460V 2.1
3SA3 0.75 FCC34S06H3S-A9F1XX ES06 30 3/60/200-208V 2.1
3SG5 1.5 FCC11E23H3S-A1F1XX E23 30 1/60/115V 4.1
3SG5 1.5 FCC11E23H3S-A2F1XX E23 30 1/60/230V 4.1
3SG5 1.5 FCC11E23H3S-A3F1XX E23 30 3/60/230V 4.1
3SG5 1.5 FCC11E23H3S-A4F1XX E23 30 3/60/460V 4.1
3SG5 1.5 FCC11E23H3S-A9F1XX E23 30 3/60/200-208V 4.1
6SJ7 3 FCC03S30H6S-A1F1XX ES30 60 1/60/115V 7.5
6SJ7 3 FCC03S30H6S-A2F1XX ES30 60 1/60/230V 7.5
6SJ7 3 FCC03S30H6S-A3F1XX ES30 60 3/60/230V 7.5
6SJ7 3 FCC03S30H6S-A4F1XX ES30 60 3/60/460V 7.5
8SN8 3 FCC03S50H8S-A2F1XX ES50 80 1/60/230V 11.3
8SN8 3 FCC03S50H8S-A4F1XX ES50 80 3/60/460V 11.3
8SN9 5 FCC05S50H8S-A4F1XX ES50 80 3/60/460V 15.2






CURTIS CHECK VALVES, CURTIS PISTONS, CURTIS GASKETS, CURTIS VALVE PLATES, CURTIS C98 RODS, CURTIS HOSES, CURTIS BELTS, CURTIS PISTON RINGS, CURTIS PUMPS, CURTIS COMPRESSOR MOTORS; CURTIS MAG STARTERS, CURTIS PRESSURE SWITCHES; CURTIS 5HP – 350HP COMPRESSORS; FSCURTIS REPLACMENT PARTS; OEM REPLACEMENT PARTS CALL: 214-428-2868



AIR COMPRESSOR MOTORS

AIR COMPRESSOR PRESSURE SWITCHES

AIR COMPRESSOR CONTACTORS

AIR COMPRESSOR BELTS

AIR COMPRESSOR HOSES

AIR COMPRESSOR PUMPS

AIR COMPRESSOR GASKETS

AIR COMPRESSOR VALVES

AIR COMPRESSOR PISTONS

AIR COMPRESSOR RODS

AIR COMPRESSOR SERVICE

AIR COMPRESSOR PARTS

AIR COMPRESSOR CHECK VALVES

AIR COMPRESSOR SAFETY VALVES

AIR COMPRESSOR PISTON RINGS

AIR COMPRESSOR OIL

AIR COMPRESSOR FILTERS

AIR COMRPESSOR SEPARATORS



CALL: 214-428-2868 FOR PRICES:

Visit: www.hkaircompressors.com



CALL H&k PUMP FOR SALES AND SERVICE.  WE REBUILD ALL CURTIS COMPRESSOR PUMPS.  IN ADDITION, WE TYPICALLY KEEP MOST OF THE PARTS IN STOCK EITHER INSIDE OUR WAREHOUSE OR AT THE CORPORATE OFFICE.  WE DROP SHIP DIRECTLY TO YOU.

214-428-2868







214-428-2868






2601025620 70122-57060 COVER-REAR BEARING
2601025650 70122-57960  REAR BEARING COVER GASKET
2601025680 70122-57080 SEAL-FRONT-OIL
2601025702 70122-61282 OIL SPLASH DIPPER
2601025820 7016212610 PACKING-CYLINDER/HEAD
2601025880 OUTLET VALVE PUSH COVER GASKET
2601025940 7016262030 COMPRESSION RING (2ND)
2601025950 7016262050 OIL CONTROL RING (2ND)
2601025982 2ND STAGE CONNECTING ROD ASSY
2601026100 CYLINDER HEAD
2601026120 701210A111020 GASKET HEAD VP6A
2601026130 70124-11612 CYLINDER HEAD GASKET
2601026190 70124-11110 INLET & OUTLET VALVE SEAT GSKT
2601026210 70124-11150 INLET VALVE PUSH COVER
2601026230 70124-11220 UNLOADER PISTON-E71-1ST. STAGE
2601026240 70124-11230 UNLOADER SPRING
2601026250 70124-11450 OUTLET VALVE PUSH COVER
2601026261 CYLINDER
2601026310 CYLINDER-CASE GASKET E71,ES100
2601026520 70124-57950 FRONT BEARING COVER GASKET
2601026671 CCC1258 BREATHER, ASSY BLACK
2601026681 BREATHER ASSY
2601026740 70124-57750 OIL LEVEL GLASS ASSEMBLY
2601026770 701210A1-57730 OIL LEVEL GLASS GASKET E71
2601026780 701210A1-57740 OIL LEVEL GLASS PUSH COVER
2601026820 70124-61011 PISTON ( 1ST) LONG S/N3020000&
2601026840 70124-61030 COMPRESSION RING E71, ES100,
2601026860 70124-61050 OIL CONTROL RING E71, ES100,
2601026880 70124-61070 PISTON PIN SNAP RING
2601026900 70124-61090 CONNECTING ROD BEARING 1/2SHL
2601026990 70124-61120 PISTON PIN (1ST.)
2601027000 70124-61201 CONNECTING ROD ASSEMBLY
2601027080 CYLINDER FOR VA-100/TA-100
2601027090 70124-51011 CYLINDER ES100
2601027260 701210B162200 CONNECTING ROD ASSY LOW PRESSURE CT55
2601027590 70127-57080 SEAL-FRONT/OIL
2601027620 70125-11110 INLET & OUTLET VLV GSKT (1)
2601027641 7012511150 COVER-INLET VALVE PUSH
2601027660 70125-11220 PISTON-UNLOADING (1ST.)
2601027680 70125-11230 SPRING-UNLOADER
2601027691 70125-11451   OUTLET VALVE PUSH COVER (1ST)
2601027730 70125-61030 RING-COMPRESSION (1ST.)
2601027740 70125-61050 RING-OIL CONTROL (1ST.)
2601027750 70125-61070 RING-PISTON PIN SNAP
2601027780 70125-61090 CONNECTING ROD CRANK PIN METAL
2601027850 70125-61120 PISTON PIN (1ST.)
2601027860 70125-61200 CONNECTING ROD ASSY
2601028281 701308A1-56011 CRANKSHAFT
2601028350 COVER FRONT BEARING REPL 7013357030
2601028420 701308A1-57070 REAR BEARING COVER GASKET
2601028460 OIL BAFFLE
2601028560 CYLINDER
2601028610 E50 2ND STAGE PISTON
2601028650 PIN-PISTON (2ND.)
2601028660 CONNECTING ROD ASSY 2ND
2601028661 CONNECTING ROD ASSEMBLY
2601029280 70132-61290 OIL SPLASH DIPPER
2601029360 CYLINDER HEAD
2601029380 CYLINDER & HEAD PACKING
2601029400 CYLINDER (2ND)
2601029450 PISTON (2ND STAGE)
2601029480 PIN-PISTON (2ND.)
2601029711 70134-57030 FRONT BEARING COVER
2601029790 GASKET REAR BEARING COVER
2601029800 701310A1-57070-2 SHIM REARING COVER GASKET THKNS 0.1MM
2601029810 70134-57960 REAR BEAR COV GASK THKNS 0.8MM
2601029860 70134-57080 FRONT OIL SEAL E71, ES150, E15
2601029870 701310A1-57590 OIL BAFFLE
2601029920 70134-57010-4024 ES100 CRANKCASE
2601029991 70174-12010 CYLINDER HEAD-2ND.
2601030010 BOLT
2601030021 70174-52011 CYLINDER (2ND.)(S/N3020000&UP)
2601030040 70134-56010 CRANKSHAFT
2601030090 70174-62010-1 PISTON (2ND)
2601030120 70174-62120 PISTON PIN (2ND.)
2601030131 70174-62202 CONNECTING ROD ASSEMBLY
2601030190 Cylinder Head
2601030200 Cylinder
2601030280 70134-61281 DIPPER OIL SPLASH E71
2601030290 OIL SPLASH DIPPER
2601030530 70135-11612 CYLINDER HEAD GASKET 1ST STAGE
2601030591 70135-51011 CYLINDER FOR E15B AND ES150B
2601030620 GASKET, CRANKCASE
2601030630 70135-51610 CYLINDER/CASE PACKING
2601030820 70135-57950 FRONT BEARING COVER GASKET
2601030910 CCC1697 BREATHER ASSEMBLY ES150
2601030980 ES150 PISTON
2601031021 70135-61281 DIPPER-OIL SPLASH
2601031110 701312A3-11010 Cylinder Head 1st TA-120
2601031130 701312A3-11020 HEAD CYLINDER GASKET
2601031150 CYLINDER
2601031170 CRANK CASE TA-120
2601031300 70175-12010 CYL HEAD 2ND
2601031330 70175-12150 COVER-INLET VALVE PUSH
2601031350 70175-12450 OUTLET VALVE PUSH COVER (2ND.)
2601031360 70175-52010 CYLINDER
2601031380 70135-56011 CRANKSHAFT
2601031441 70175-62011-1 PISTON-2ND STAGE NEW STYLE
2601031470 7017562080 BUSHING-CONN. ROD PISTON PIN
2601031481 70175-62121 E15 PISTON PIN 2ND STAGE
2601031491 70175-62201 CONNECTING ROD ASSEMBLY (2ND)
2601031550 Cylinder Head
2601031560 Cylinder
2601031820 BREATHER ASSEMBLY BODY ES150
2601035400 70153-11641 UNLOADER GASKET
2601035400 7015311641 UNLOADER GASKET
2601035670 70112-61011 PISTON
2601035680 70112-61050 RING OIL CONTROL HIGH PRESSURE
2601037952 OIL, LEVEL SCREW IN GLASS
2601038650 CT55 PISTON PIN HP
2601038930 SMALL END PLATE D96
2601039010 Piston
2601039550 CM623 PLATE-LPSV COVER
2601039570 CM627 SPACER
2601039590 CM625 COVER PLATE
2601039600 CM624 COVER PLATE
2601039630 CM626 COVER PLATE
2601039670 CDB1437 PLATE END LARGE NG & C98
2601039690 CM604 SMALL END PLATE C98
2601039720 CMA618 DOOR WITH BREATHER PORT
2601040050 CD1251 CYLINDER HEAD
2601040270 CDA1287 CYLINDER
2601040290 CDA1294FS CRANKSHAFT
2601040360 CDA1250 CRANKCASE D97
2601040370 CDA1227A LARGE END PLATE D97, C89
2601040390 CJ408-2 SMALL END PLATE D97
2601040570 CDA1214 DOOR WITH BREATHER PORT
2601040840 CM1051 CYLINDER HEAD
2601040860 CM1009B PLATE
2601040910 CM1009A PLATE
2601041060 CM1038-1 SLEEVE HOLD DOWN HPSV
2601041080 CM1037-1 HOLD DOWN SLEEVE
2601041160 DISCHARGE VALVE PLUG
2601041170 CM1021 PLUG
2601041180 CM1006 CYLINDER
2601041200 CM1048FS CRANKSHAFT SUPPLIED BY FUSHENG
2601041210 CM1005 CRANKCASE C89
2601041500 CYLINDER CASE GASKET
2601042010 70A610B111010 Cylinder Head
2601042020 70A610B111020 GASKET VALVE CYLINDER HEAD CT55
2601042030 70A610B156010 CRANKSHAFT CT55
2601042040 CRANKCASE
2601042050 CT55 PISTON PIN LP
2601042120 70A612B1-11020 GASKET CYLINDER HEAD VALVE CT75
2601043180 Turn off  handle
2601043190 Turn off handle
2601230340 PULLEY COMPRESSOR CT55
2601230781 PULLEY-COMPRESSOR ES05
2601230800 70112-76210 WASHER-COMPRESSOR PULLEY
2601230840 7015276010 PULLEY-COMPRESSOR
2601230941 70153-76011 FLYWHEEL-1 PIECE
2601231281 70121-76011 PULLEY FLYWHEEL COMPRESSOR ES06
2601231760 COMPRESSOR PULLEY
2601231780 COMPRESSOR PULLEY WASHER
2601232371 COMPRESSOR PULLEY
2601232610 70124-76310 COMPRESSOR FAN
2601233640 701308A1-76010 PULLEY-COMPRESSOR
2601234241 70122-76011 PULLEY-COMPRESSOR ES20/E23
2601234581 70134-76011 COMPRESSOR PULLEY
2601234880 70135-76310 COMPRESSOR FAN FOR E15, ES150
2601235151 70135-76011 PULLEY-COMPRESSOR
2601237360 70123-76210 WASHER THRUST COMPRESSOR PULLEY CT55
2601237440 COLLAR
2601237530 CDA1248 FLYWHEEL 3-B GROOVE D97/C89
2601237610 70A612B176010 PULLEY COMPRESSOR CT75
2601310010 70111-31020 INLET VALVE RECEIVER
2601310030 70111-31070 SPRING-INLET VALVE
2601310170 70112-31020 INLET VALVE RECEIVER
2601310190 70112-31070 SPRING-INLET VALVE-1ST.
2601310240 7015231000 VALVE ASSEMBLY
2601310270 7015231030 PLATE-I O VALVE (1ST.)
2601310281 70152-31070 VALVE PLATE SPRING
2601310310 70152-11622 GASKET-CYLINDER & VALVE SEAT
2601310350 7015232030 PLATE-VALVE I O (2ND.)
2601310361 7015232070 SPRING VALVE PLATE 2ND
2601310400 701110B131140 GASKET MIDDLE VALVE PLATE CT55
2601310410 701110B1-31150 GASKET VALVE CYLINDER CT55
2601310420 KIT VALVE ASSY
2601310440 70153-31011 VALVE SEAT UPPER
2601310450 70153-31021 VALVE SEAT BOTTOM
2601310460 VALVE PLATE INLET & OUTLET 1ST
2601310470 VALVE PLATE SPRING 1ST STAGE E57
2601310480 70153-31080 UNLOADER FORK
2601310500 70153-31120 PACKING VALVE SEAT GASKET
2601310510 70153-11622 GASKET PACKING CYLINDER & HEAD
2601310560 70153-32032 PLATE INLET & OUTLET VALVE
2601310570 SPRING-VALVE PLATE 2ND
2601310620 701112B1-31150 GASKET VALVE TO CYLINDER CT75
2601310630 701208A1-31000 INLET VALVE ASSEMBLY
2601310650 70123-31010 INLET VALVE SEAT E71, E50,ES30
2601310690 70123-31070 INLET VAL SPRING E71,E50,ES30
2601310700 70123-31080 INLET VAL UNLOADER FORK E71
2601310710 70123-31090 INLET VALVE UNLOADING FORK
2601310860 PLATE-INLET AND OUTLET VALVE
2601310870 SPRING-INLET VALVE (2ND.)
2601310880 70124-31000 INLET VALVE ASSEM
2601310901 70124-31010 INLET VALVE SEAT
2601310930 70124-31030 OUTLET & INLET VALVE PLATE E71
2601310940 70124-31070 INLET VALVE SPRING 2ND STAGE
2601310950 70124-31080 INLET VALVE UNLOADER FORK
2601310960 70124-31090 INLET VALVE UNL. FORK GUIDE
2601311120 VALVE ASSEMBLY--INLET
2601311141 70125-31010 SEAT- INLET VALVE
2601311170   INLET VALVE PLATE (1ST)
2601311180 70125-31070 INLET VALVE SPRING (1)
2601311190 70125-31080 FORK-INLET VALVE UNLOADING
2601311200 70125-31090 INLET VALVE UNLOADER FORK
2601311230 70173-32000 INLET VALVE ASSEM.
2601311250 70123-31020 INLET VALVE RECEIVER E71, E50
2601311470 SPRING-INLET VALVE(2ND.)
2601311650 INLET VALVE ASSEMBLY
2601313470 70A110B1-31140 GASKET VALVE CT75
2601313490 70A110B132030 VALVE REED HIGH PRESSURE CT55
2601313900 CD1231 SPACER
2601313990 PLUG-HIGH PRESSURE SUCTION
2601314010 CP6156 CAP-SUCTION VALVE
2601314190 70A20F71-41070 VALVE CYLINDER GASKET E3
2601314370 VALVE ASSY CT55
2601314380 70A610B131010 VALVE SEAT UPPER CT55
2601314390 70A610B131020 VALVE SEAT LOWER CT55
2601314400 VALVE ASSY CT75
2601314411 70A612B131010 VALVE SEAT UPPER CT75
2601314441 70A612B1-31141 VALVE GASKET MIDDLE CT75
2601320010 70111-41070 SPRING-OUTLET VALVE
2601320030 70112-41070 SPRING-OUTLET VALVE-1ST.
2601320070 70123-41000 OUTLET VALVE ASSEMBLY
2601320081 70123-41011 OUTLET VALVE SEAT E71 E50 ES30
2601320090 70123-41020 OUTLET VAL RECEIVER E71 E50
2601320110 70123-41070 OUTLET VAL SPRING E71 E50 ES50
2601320120 70123-41810 OUTLET VALVE BOLT E71 E50 ES30
2601320180 SPRING-OUTLET VALVE(2ND.)
2601320190 70124-41000 OUTLET VALVE ASSEM
2601320202 70124-41010 OUTLET VALVE SEAT
2601320210 70124-41020 OUTLET VALVE RECEIVER
2601320220 70124-41072 OUTLET VALVE SPRING
2601320311 OUTLET VALVE-ASSEMBLY (1ST.)
2601320333 70125-41011 OUTLET VALVE SEAT (1ST)
2601320344 7012541025 OUTLET VALVE RECEIVER
2601320352 70125-41030 OUTLET VALVE PLATE (1ST)
2601320360 Outlet Valve Plate
2601320376 70125-41071 OUTLET VALVE SPRING (1ST)
2601320390 SPRING-OUTLET VALVE (2ND.)
2601320460 OUTLET VALVE ASSY (2ND)
2601321070 CD1229 PLUG
2601321140 70A20F71-51030 DISCHARGE VALVE SPRING, E3
2601410140 UNLOADER TUBE ASSEMBLY
2601490431 70121-87010 JOINT-OUTLET PIPE # B
2601490440 70121-87100 PIPING ASSEMBLY-COMPRESSOR
2601490581 70123-87010 JOINT OUTLET PIPE #B
2601490640 7012387101 ES30B OUTLET PIPING ASSEMBLY
2601490751 70122-87010 JOINT-OUTLET PIPE #A
2601490781 70122-87020 JOINT-OUTLET-PIPE #B
2601490810 70122-87100 PIPING ASSEMBLY-COMPRESSOR
2601490971 70124-87010 OUTLET PIPING JOINT DISC ELBOW
2601490972 Outlet Pipe Joint E71
2601491090 701210B187010 JOINT OUTLET PIPE CT75
2601491100 701210B187020 JOINT OUTLET PIPE CT75
2601491230 GASKET MANIFOLD VP7B
2601491240 7012587510 MANIFOLD GASKET
2601491491 7013387020 OUTLET PIPE JOINT #A
2601491501 JOINT
2601491510 701308A1-87101 DISCH. PIPING ASSM./SHORT
2601491580   DISCHARGE PIPING ASSM#B INTER
2601491711 70132-87020 JOINT-OUTLET PIPE-#B
2601491741 70132-87030 JOINT
2601491770 70132-87100 OUTLET PIPING ASSEMBLY
2601491800 7017287300 JOINT-OUTLET PIPE #A
2601491910 70134-87020 OUTLET PIPE JOINT #B
2601491911 OUTLET PIPING JOINT TA100
2601491971 70134-87101 DISCHARGE PIPING ASSEMBLY-
2601492030 70174-87300 DISC PIPING ASSEMBLY - LONG
2601492290 70175-87030-4010 DISTRIBUTION MANIFOLD
2601492322 7013587021 OUTLET PIPE JOINT #B
2601492352 701312A1-87032 JOINT
2601492390 70135-87100(long) DISCHARGE PIPING ASSY (LONG)
2601492410 7013587200 INTERCOOLER TUBE-SHORT
2601492431 7013587011 OUTLET PIPE JOINT #B FOR
2601492450 701312A2-87100 PIPING ASSEMBLY-DISCHARGE
2601492540 70175-87021 OUTLET PIPE JOINT B
2601492570 70175-87300(long) INTERCOOLER LONG
2601492590 70175-87400(short) DISCHARGE PIPING ASSY (SHORT)
2601492680 Piping Ass'y 2nd HTA-120
2601494001 Inlet Pipe Joint
2601494011 Inlet Pipe Joint
2601494020 70A109B187100 PIPE OUTLET CT55
2601494130 CM603 MANIFOLD
2601494140 CM602 MANIFOLD
2601494160 CM651 MANIFOLD CONNECTION
2601494240 CD1207-1 INTERCOOLER MANIFOLD
2601494260 CD1207-2 MANIFOLD FLANGE-INTERCOOLER
2601494320 CM1008 FLANGE
2601494541 70A612B1-87101 PIPE INTERCOOLER ASSY CT75
2601510030 7015271110 BODY-INTERCOOLER
2601510070 7015271612 GASKET/PACKING
2601510140 70153-71111 BODY-INTERCOOLER
2601510161 70153-71161 COVER-INTERCOOLER
2601510190 70153-71611 PACKING NON-ASB
2601510220 70153-71622 PACKING INTERCOOLER COVER
2601540010 70111-66001 AIR STRAINER ASSEMBLY
2601540050 70111-66140 FILTER AIR STRAINER
2601540161 7015266001, 7015266011 AIR STRAINER ASSEMBLY
2601540200 70152-66141 ELEMENT-AIR STRAINER
2601540262 70153-66002 FILTER, INTAKE ASSY
2601540300 70153-66142 Air Filter Element (E-57)
2601540330 70153-66132 FILTER, GASKET COVER
2601540360 AIR STRAINER ASS'Y
2601540410 70123-66140 Air Filter Element (E-71)
2601540560 70123-66000 FILTER, INTAKE ASSY
2601540980 Air Filter Element (CT-55)
2601541070 Air Filter Element (CT-75)
2601693920 KIT VALVE REBUILD ES150
2601694460 KIT GASKET VW50 OL5
2602000140 TW150 15HP Two Stage
2602000300 VW50  5HP  Single Stage
2602000310 TW75 7.5HP Two Stage
2602000320 TW100 10HP Two Stage
2602020130 PACKING, CRANKCASE - CYLINDER
2602020190 RING, SPACING
2602020220 PACKING, FRONT COVER
2602020360 FILTER, SIDE COVER
2602020440 PLUG, PISTON PIN
2602020490 PACKING, CYLINDER HEAD
2602020810 RING, BEARING SPACE
2602020870 FILTER, SIDE COVER
2602021180 PACKING, VALVE - 1ST HEAD
2602021320 BUSHING, ADIABATIC - 1ST
2602021390 PACKING, VALVE - 1ST HEAD
2602021510 PACKING, VALVE - 2ND HEAD
2602022260 Cylinder Head
2602022270 PACKING, VALVE - 1ST/2ND HEAD
2602022300 PACKING, VALVE - 1ST HEAD
2602022320 PACKING, CRANKCASE - 1ST CYL
2602022340 PACKING, CRANKCASE - 2ND CYL
2602230620 COMP PULLEY TW-100
2602230630 COMPRESSOR FAN TW-75/100/150
2602310060 INLET VALVE ASSEMBLY
2602310170 1ST VALVE ASSEMBLY
2602310210 2ND VALVE ASSEMBLY
2602310250 1ST VALVE ASSEMBLY
2602310300 PACKING, CYLINDER - 1ST VALVE
2602310390 PACKING, CYLINDER - 1ST VALVE
2602310480 PACKING, CYLINDER - 2ND VALVE
2602310660 PACKING, CYLINDER - 1ST/2ND
2602310730 PACKING, CYLINDER - 2ND VALVE
2602320010 OUTLET VALVE ASSEMBLY
2602490060 Piping Ass'y
2602490480 Middle Flange Pad
2602690210 KIT VALVE REBUILD FOR VW50 OL5
2602690220 KIT VALVE REBUILD FOR TW75 OL7.5
2602690230 KIT GASKET TW100 OL10
2602690240 KIT RING FOR VW50 OL5
2602690250 GASKET KIT
2602690260 KIT, VALVE REBUILD
2602690270 KIT VALVE REBUILD FOR TW100 OL10
2602690280 KIT RING FOR TW75 OL7.5
2602690290 KIT RING FOR TW100 OL10
2602690300 RING KIT
2604220020 1479004 COUPLING AIREND ZW30A
2604310290 1475064 VALVE INLET ASSEMBLY
2604330090 1475075 VALVE MIN PRESSURE 1 X 1 X 1/4 4.9BAR
2604330220 1475074 VALVE MIN PRESSURE 1-1/2 X 1-1/4 4.9BAR
2604360120 1479058 ZW37 Pressure Switch Nipple
2604360370 1474001 ADAPTER FAN MOTOR
2604360510 Gasket MPV Nx45-55
2604410040 1479046 PIPE DISCHARGE 1 RAW MATERIAL SS
2604411120 1479060 PIPE DISCHARGE 1-1/4 RAW MATERIAL  SS
2604510150 1474006 RADIATOR ZW(V)50A
2604530040 GASKET ZW30
2604530060 1473066 BRACKET WATER FILTER
2604530070 WATER FILTER HEAD
2604530080 WATER FILTER BODY
2604530180 SEAT
2604530190 NOZZLE
2604530200 DIFFUSER
2604540081 1475068 GASKET ZW20-50
2604540151 1475067 GASKET ZW20A-ZW(V)50A
2604690050 1476002 KIT ASSEMBLY ZW20A
2604690220 1476004-1 KIT ASSEMBLY ZW50A
2604690530 1476005-1 KIT ASSEMBLY ZWV50A
2604690840 VALVE INLET O-RING ASSY ZW30
2605000240 CS949W AIR END BSA22 WARRANTY AIR END OLD STYLE
2605001400 CS967-5 AIR END
2605002060 CS970-1 AIREND BSA51G 1.657 GEAR RATIO RS150
2605006340 BSA61SG Airend
2605006960 BSA51SG Airend(Single Oil Seal,GAMMA Sea
2605019930 CS956-2 AIREND SA31G 2.25 GEAR RATIO
2605019940 CS956-6 AIREND SA31G 1.78 GEAR RATIO
2605026790 PACKING
2605028170 GEAR ASS'Y i=1.526 for BSA41G
2605031320 SLEEVE
2605033590 SA-5G MAIN GEAR  i=1.245
2605033620 MAIN GEAR
2605033650 SA-5G MAIN GEAR  i=1.634
2605033810 SA-5G PINION i=1.245
2605033840 PINION
2605033870 SA-5G PINION i=1.634
2605038890 1485193 SUCTION PIPE ES14
2605039560 PLUG Sight Glass ES15
2605039960 Gear Set
2605041220 SLEEVE Double Oil Seal BSA21S,D60*d50*34
2605041320 SHAFT BUSHING EU55 GS75-100
2605041530 SLEEVE Double Oil Seal BSA31S,D65*d55*38
2605041540 BSA41S double oil seal sleeve
2605041650 BSA41S Spacer Ring
2605042160 double oil seal sleeve
2605042360 JOINT Oil Filter ES14 G1/2" x M26-1.5
2605042570 JOINT Screw-on Connector ES14,M25*1.5-M2
2605043180 PINION
2605043190 MAIN GEAR
2605043460 PINION
2605043470 MAIN GEAR
2605043790 BSA51SG main gear i=1.649
2605043800 BSA51SG driven gear
2605043830 BSA51SG main gear
2605043840 BSA51SG driven gear
2605043850 BSA51SG main gear
2605043860 BSA51SG driven gear
2605043890 BSA61SG MAIN GEAR
2605043900 BSA61SG DRIVEN GEAR
2605044520 PINION GEAR, i=1.06
2605046300 BSA41SG Main Gear i=1.969
2605046310 BSA41SG Pinion i=1.969
2605047880 BSA41SG Main Gear i=1.133
2605047890 BSA41SG Pinion i=1.133
2605048530 BSA51SG main gear i=1.5
2605048540 BSA51SG driven gear i=1.5
2605052360 SAT72G Gear Ass'y i=0.670/0.852
2605052400 SAT72G Gear Ass'y i=0.745/0.961
2605052430 SAT72G Gear Ass'y i=0.555/0.693
2605053240 SAT63G Gear Ass'y i=0.928/1.283
2605053250 SAT63G Gear Ass'y i=0.882/1.210
2605053380 SAT63G Gear Ass'y i=0.775/1.030
2605053400 BSA51SG Gear Ass'y i=1.553
2605054270 SAT63G Gear Ass'y i=0.649/0.851
2605054280 SAT63G Gear Ass'y i=0.574/0.734
2605054290 SAT63G Gear Ass'y i=0.758/1.015
2605054300 SAT63G Gear Ass'y i=0.702/0.930
2605054340 SAT63G Gear Ass'y i=0.849/1.141
2605057840 SAT72G Gear Ass'y i=0.613/0.774
2605057880 SAT72G Gear Ass'y i=0.860/1.127
2605057890 SAT72G Gear Ass'y i=0.781/1.014
2605057900 SAT72G Gear Ass'y i=0.706/0.911
2605057970 SAT63G Gear Ass'y i=0.725/0.957
2605058640 SAT63G Gear Ass'y i=0.975/1.345
2605100870 1489022 FILTER BOTTOM SE10-15
2605101550 1483023 CTR PANEL SE10-15
2605102350 1483053 Enclosure Filter -R
2605103110 Noise Hood Ass'y
2605103210 UPPER COVER ASS'Y
2605103310 1489544 BOLT
2605103320 PIN BOLT
2605103330 1489545 SEAT
2605104150 1485038 SA30A,W Rear Frame Pre-filter
2605104790 1489072 BASE FEET
2605104870 1483055 Enclosure Filter -L
2605104890 1483054 Enclosure Filter -B
2605104900 1479053 SA/ZW(V)/BASV Pre-filter
2605105450 PANEL FRONT RIGHT GSV75/100
2605105480 PANEL MIDDLE REAR DOOR GSV75/100
2605105510 PANEL RIGHT SIDE ENCL GSV75-100
2605105530 Rear Right Door
2605105550 DOOR LEFT REAR PANEL GSV75-100
2605105620 Front Right Support
2605105630 Rear Right Support
2605108000 PRE-FILTER SCREEN
2605108050 PRE-FILTER SCREEN
2605114860 1489122 PRE-FILTER AIR
2605116280 Pre-Filter SA15-22A,555*235*3
2605117940 1483186 Pulley Guard SEG5-7.5
2605118060 motor support
2605118070 left support
2605118080 front door
2605118090 starter box cover
2605118100 right support
2605118110 right door
2605118120 while tube
2605118130 1483177 COVER UPPER ENCLOSURE SEG10-15
2605118240 COVER ENCLOSURE SEG10-15
2605118240 1483178 COVER ENCLOSURE SEG10-15
2605121390 Air Inlet Cover
2605121510 SA22~37A Air Filter Pre-filter
2605121670 Baffle Pre-filter for Cooler SA15~22A
2605121680 Cover Motor-Air Inlet SA15~22A
2605121750 Baffle Pre-filter for Cooler SA22~37A
2605121780 Pre-Filter
2605121790 Pre-Filter
2605121810 Fixed Plate
2605121950 SA22~37A Right Maintenance Cover
2605122030 Pre-filter   20"x8" ( Cab)
2605122040 Cover attached Rear SA08~15A
2605122060 Astomous Cover
2605122080 Air Exhaust Cover
2605122100 Air Entry Cover
2605122220 Right Maintenance Cover
2605122230 Astomous Cover
2605122240 Air Entry Cover
2605122250 Air Exhaust Cover
2605122260 Fixed Plate
2605122270 Pre-filter 9.5" X 18.5" (Cab)
2605122570 Cover
2605122590 Anti Loosening Frame
2605122600 Anti loosening frame 225M
2605122640 Inlet Pre-Filter Nx45-55
2605122680 Inlet Pre-Filter Nx75-90
2605122790 Cooler Screen 26.18"x24.60"
2605122810 Cooler Screen 21.45" x 20.47"
2605122830 SA03~08A plugin stents cover
2605125810 PRE-FILTER SCREEN
2605125820 PRE-FILTER SCREEN
2605125830 SA200A pre-filter
2605126390 Door Left SA08-15A
2605126400 Inverter support
2605126410 Base Frame Cover
2605126840 Right front panel
2605126940 Right front panel
2605126960 Gasket motor SA03~15A
2605127010 Base Frame Cover
2605127710 45C Fan Transition Support
2605127890 Air Inlet Cover C FRAME DIRECT
2605128020 SA55~90A bracket cover
2605128050 SA55~90A forklift plate
2605128150 SA55~90A back right door
2605128160 SA55~90A back left door
2605128170 SA55~90A right cover
2605128180 SA55~90A front right door
2605128190 SA55~90A front left door
2605128200 SA55~90A upper cover
2605128210 SA55~90A back left column
2605128220 SA55~90A front left column
2605128250 SA55~90A the left cover
2605128380 SA37~55A 225Mmotor support
2605128550 SA37~55A back left door
2605128570 SA37~55A front right door
2605128580 SA37~55A front left door
2605128590 SA37~55A upper cover
2605128610 SA37~55A front left column
2605128640 SA37~55A the left cover
2605128790 Cover Forklift Slot SA22~37A
2605128810 Pre-filter Cover
2605128910 Right Cover
2605128920 Front-Right Panel
2605128950 Rear-Right Support
2605128990 Cover Left SA22~37A
2605129080 Forklift Slot Cover
2605129100 Pre-filter Cover
2605129170 Cover Control Box SA15~22A
2605129190 Front-Right Panel
2605129230 Up Cover
2605129280 Cover Left SA15~22A
2605129340 Attached top cover
2605129350 Attached rear frame
2605129360 Attached left door
2605129370 Door attached Front SA08~15A
2605129380 Attached base frame
2605129520 Cover Belt Guard SA08-15A
2605129530 Rear support
2605129590 AOS maintenance cover
2605129600 Cover Vent SA08~15A
2605129610 Door Rear SA08-15A
2605129620 Right door
2605129630 Support Right SA08-15A
2605129640 Left support
2605129660 Left front door
2605129670 Frame Base SA08-15A
2605129740 Attached base frame
2605129750 Attached left door
2605129760 Attached front door
2605129770 Attached top cover
2605129780 Attached rear frame
2605129820 Cover Belt Guard SA03~08A
2605129830 Support Airend SA03~08A
2605129890 AOS maintenance cover
2605129900 Top cover
2605129910 Left support
2605129920 Support Right SA03~08A
2605129930 Left door
2605129940 Right door
2605129950 Rear door
2605129960 Left front door
2605134710 MOTOR SUPPORT
2605135470 MOTOR SUPPORT
2605142070 Nx132A starter box left door
2605210891 1493075 Mount Block
2605212050 1489073 RUBBER FEET
2605213640 1483147 MOTOR ARM REAR W/ BUSHING SE20-30
2605220080 COUPLING RUBBER
2605220150 Coupling House
2605220170 BRACKET COVER
2605220180 COUPLING(GEM) 75kW
2605220230 COUPLING(GEM)
2605220901 COUPLING, RUBBER
2605221120 COUPLING
2605221710 Position Ring for Seal
2605221740 Position Ring for Seal
2605221780 225M motor conversion flange
2605221850 Discharge Flange for  SA37A Cooler
2605250340 Oil Receiver Tank
2605270171 1485062 Oil Filling Cap
2605270330 1485192 RETURN TUBE
2605270410 Oil Sightglasses
2605270760 1485061 OIL SEPARATOR SEAT
2605271150 1485001 Separator Element (OBSOLETE)REPLACED BY F1486373
2605271270 1485163 GASKET AIREND SEP TANK
2605271290 1485021 OIL/AIR RECEIVER
2605271330 1485004 O.F.S. RETURN TUBE
2605272360 1485002 Oil Fine Separator-REPLACED BY 2116010191
2605272360 SEPARATOR AIR OIL ELEMENT SE40-50
2605272530 1485011 Packing
2605272551 1485022 O/A Receiver
2605272580 1485012 Packing
2605273050 AOS Return Pipe Nx75-90
2605273531 GASKET
2605273710 Bolt for Oil Sightglasses
2605275120 OIL FILL CAP
2605276810 AOS tube
2605276820 Oil Fill Plug
2605276880 AOS tube
2605276900 AOS Return Pipe Nx45-55
2605277010 Oil receiver
2605277020 Oil receiver
2605277060 GASKET
2605277180 SA132A Oil tank assy (ASME)
2605277190 SA200A oil tank assy (ASME)
2605277550 RECEIVER, A/O
2605277610 OIL FILTER SEAT
2605277620 Oil Pressure Switch
2605289860 Oil Tank
2605289890 Oil Tank
2605313020 Packing
2605313120 Element 71℃~83℃ for TV-4J G1/2"
2605313330 GASKET
2605313380 Element 77℃~89℃ for TV-4J G1/2"
2605320020 Solenoid valve assembly
2605320030 Solenoid valve assembly
2605331080 Packing
2605332920 Check Valve
2605332950 Packing
2605333030 Pressure Maintain Valve
2605340490 Solenoid Valve Assembly
2605360101 1485065 Adaptor
2605361190 PIPE
2605361300 Packing
2605361900 Gasket MPV Nx75-90
2605361910 Flange Gasket Nx75-90
2605361970 Gasket
2605362030 Gasket
2605362080 Gasket, AOS Element Nx45-55
2605362090 Gasket
2605362230 SA132A  3"Expansion hose Flange Gasket
2605362240 Gasket
2605362250 Gasket
2605362260 Gasket
2605362310 SA132A M.P.C.Valve Flange Gasket
2605362810 Valve Combination Gasket
2605362980 AFTERCOOLER GASKET
2605369840 Gasket (Bottom Discharge) Nx45-90
2605369850 Gasket (Top Discharge) Nx75-90
2605369860 Packing
2605369870 Gasket (Top Discharge) Nx45-55
2605369890 Gasket For Airend
2605369900 Gasket  Oil Hose
2605369910 Gasket
2605370080 Seal Washer
2605370090 Seal Washer
2605410650 1485041 Discharge Flange
2605410920 1485010 GASKET DISCHARGE TUBE
2605410930 1489023 RUBBER COVER
2605410980 1485050 PIPE STAINLESS STEEL
2605410990 1485117 PIPE ASSY STAINLESS STEEL SE20-30
2605411190 1479061, 1489075 Rubber Washer
2605411230 1485077 Discharge Pipe
2605411420 OUTLET PACKING
2605411600 1485082 Pipe
2605411610 1485113 Steel Pipe
2605411780 Rubber Cover Of Out
2605411860 Air Pipe
2605414120 KIT STAINLESS STEEL TUBE GSV75-100
2605415040 1495179 1/8” Steel Tube Nipple
2605415600 Discharge pipe (extens.)
2605415610 DISCHARGE ELBOW GSV75-100
2605415620 Discharge pipe flange
2605416090 Oil Hose
2605416120 Oil Return Hose ( Belt)
2605416150 Oil pipe
2605416170 Attached Air PIPE SA08 ~ 15
2605416190 Oil pipe
2605416220 Oil Return Hose ( Belt)
2605416230 Discharge Hose (Belt)
2605416290 Oil Hose
2605416310 Hose (MPV-cooler)
2605416320 Release control pipe
2605416340 Oil Hose
2605416480 Release control pipe
2605416590 Discharge Hose (Belt)
2605416660 Bearing Oil Injection Hose Nx75-90
2605416670 Discharge Hose Nx75-90
2605416690 Oil Return Hose Nx75-90
2605416860 Bearing Oil Inject Hose Nx45-55
2605416870 Oil Return Hose Nx45-55
2605416900 Discharge Pipe Nx45-55 Cooling System
2605417020 SA132A Pipe
2605417090 SA200A Air Filter Pipe
2605417100 Oil Pipe
2605417130 Oil Pipe
2605417140 Oil Return Pipe
2605417300 SA132A Oil Pipe(Oil Filter-Airend)
2605417330 SA132A 2nd Oil Return Pipe(AOS-Oil Tank
2605417360 SA132A Oil Pipe(TV-Oil Filter)
2605417580 Control Hose Nx75-90
2605418680 PIPE
2605418690 AIR PIPE
2605418710 OIL RETURN PIPE
2605418720 COOLING INLET PIPE
2605418730 OIL INLET PIPE
2605418740 OIL RETURN PIPE
2605418760 OILING HOSE
2605418770 Discharge Hose
2605418780 SEWAGE HOSE
2605418800 SEWAGE HOSE
2605418830 EXHAUST GASKET
2605418840 COOLER EXHAUST GASKET
2605418860 PIPE, TERMINAL EXHAUST
2605418870 Stage 1 Oiling Hose
2605418880 INLET HOSE
2605418890 Stage 2 Oiling Hose
2605418900 Airend Sewage Hose
2605418910 AIREND EXHAUST PIPE
2605418920 Oil Receiver Sewage Hose
2605418930 Discharge Hose
2605418940 COOLER DISCHARGE HOSE
2605418950 INTERSTAGE OILING HOSE
2605418960 OIL RETURN PIPE
2605418970 MPV AIR PIPE
2605419080 EXHAUST PIPE
2605419220 SEWAGE HOSE
2605419260 SEWAGE HOSE
2605419400 Oil Return Line Nx75-90 Cooling System
2605419410 Oil Inlet Tube Nx75-90 Cooling System
2605419430 Air Pipe Nx75-90
2605419440 Main Oil Injection Hose Nx75-90
2605419460 Airend Discharge Pipe Nx75-90
2605419480 Oil Return Line Nx45-55 Cooling System
2605419490 Oil Inlet Tube Nx45-55 Cooling System
2605419500 Discharge Pipe Nx75-90 Cooling System
2605419510 Air Pipe Nx45-55
2605419520 Main Oil Injection Hose Nx45-55
2605419540 Airend Discharge Pipe Nx45-55
2605419610 Oil Hose
2605419620 Oil Pipe
2605419630 Oil Pipe
2605419640 Air Pipe
2605419650 Air Pipe
2605419660 PIPE Air SA22~37A (airend-receiver)
2605419670 Intake Suction Hose Nx75-90
2605419690 Intake Suction Hose Nx45-55
2605419710 Inlet Hose
2605419720 Inlet Hose
2605419780 Oil Hose
2605419790 Oil Pipe
2605419800 Oil Pipe
2605419810 Air Pipe
2605419820 Air Pipe
2605419840 Oil Pipe
2605419850 Oil Hose
2605419860 Pipe(cooler-air out joint)
2605419880 Hose (MPV-cooler)
2605419890 PIPE Air SA08 (M.P.V-joint)
2605419900 HOSE, HIGH PRESSURE
2605419940 Pipe(cooler-air out joint)
2605419960 Oil Pipe
2605460390 1485121, 1485123 Hose Assembly SE10
2605460530 1485037 HOSE AND JOINT ASSEMBLY SE7.5
2605460560 Hose Assembly SE5
2605460760 1489004 Hose Assembly SE15
2605461580 Hose Assembly SE20/25/30
2605462360 1485116 Hose Assembly SE40/50
2605466110 1485172 Hose Assembly Kit  SEG5 & 7.5
2605466250 1485195 HOSE ASSEMBLY KIT SEG10&15
2605466730 Oil Hose
2605466740 Main Oil Inject Hose
2605466750 Discharge Hose
2605466760 Oil Hose
2605466770 Return Hose
2605466800 SA132A Secondary Oil Return Pipe
2605466810 SA132A Oil Pipe(TV-Cooler)
2605466820 SA132A Oil Pipe(Cooler-Oil Filter)
2605466830 SA132A Discharge Pipe(Oil Tank-Inlet Val
2605466840 SA132A Oil Pipe
2605467610 SA+200-250A-THigh pressure hose 1
2605467620 High pressure hose 2
2605467630 High pressure hose 3
2605467650 SA+200-250A-THigh pressure hose 5
2605467660 SA+200-250A-THigh pressure hose 6
2605467930 pipe
2605467970 pipe
2605510380 COOLER PAD
2605512110 1484045 FAN CENTRIFUGAL SEG10-15
2605530160 SA-2 Oil Filter
2605530180 OIL FILTER ELEMENT SA-2
2605530220 1485003 Oil Filter Element SE20/25/30
2605530540 Combination Valve Screw Fitting
2605530580 Thermo Valve Assembly
2605531100 Oil Fine Separator
2605531440 Filter Oil SA3-15
2605531450 OIL FILTER ELEMENT SA37-90A(GPS)
2605531570 Thermal Valve Nx45-90
2605531590 SA200A Oil Filter Support
2605531610 Oil filter base
2605531740 OIL FILTER SEAT
2605539870 SA15-37 oil filter
2605539890 Oil filter
2605540091 Air Filters for SA-2 (SA-220(II))
2605540271 1485049 SUCTION HOSE
2605540501 1485081 Suction Hose
2605542200 1485169 HOSE AIR INLET SEG20-30
2605563990 Discharge Valve ( Control Block )
2605620250 1483138 KIT DECAL FROM FS SE30
2605620280 1483136 KIT DECAL FS SE20
2605620440 1483140 KIT DECAL FROM FS SE50
2605620460 1483139 KIT DECAL FROM FS SE40



WWW.HKAIRCOMPRESSORS.COM
214-428-2868






AIR COMPRESSOR PARTS

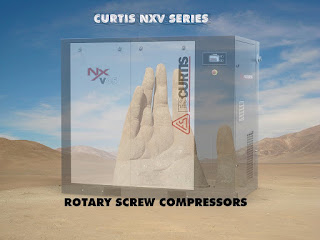

ROTARY SCREW COMPRESSORS



Model HP VOLT  PSI CFM Part Number
NxB30 40 230 100 196 FNB30DXX3HXXX
NxB30 40 460 FNB30DXX4HXXX
NxB30 40 230 125 173 FNB30DXX3JXXX
NxB30 40 460 FNB30DXX4JXXX
NxB30 40 230 150 163 FNB30DXX3KXXX
NxB30 40 460 FNB30DXX4KXXX
NxB30 40 230 175 149 FNB30DXX3LXXX
NxB30 40 460 FNB30DXX4LXXX
NxB37 50 230 100 234 FNB37DXX3HXXX
NxB37 50 460 FNB37DXX4HXXX
NxB37 50 230 125 203 FNB37DXX3JXXX
NxB37 50 460 FNB37DXX4JXXX
NxB37 50 230 150 193 FNB37DXX3KXXX
NxB37 50 460 FNB37DXX4KXXX
NxB37 50 230 175 180 FNB37DXX3LXXX
NxB37 50 460 FNB37DXX4LXXX
NxB30 40 230 100 196 FNB30DXD3HXXX
NxB30 40 460 FNB30DXD4HXXX
NxB30 40 230 125 173 FNB30DXD3JXXX
NxB30 40 460 FNB30DXD4JXXX
NxB30 40 230 150 163 FNB30DXD3KXXX
NxB30 40 460 FNB30DXD4KXXX
NxB30 40 230 175 149 FNB30DXD3LXXX
NxB30 40 460 FNB30EXD4LXXX
NxB37 50 230 100 234 FNB37DXD3HXXX
NxB37 50 460 FNB37DXD4HXXX
NxB37 50 230 125 203 FNB37DXD3JXXX
NxB37 50 460 FNB37DXD4JXXX
NxB37 50 230 150 193 FNB37DXD3KXXX
NxB37 50 460 FNB37DXD4KXXX
NxB37 50 230 175 180 FNB37DXD3LXXX
NxB37 50 460 FNB37DXD4LXXX





AIR COMPRESSOR SERVICE











214-428-2868




air compressor service




Model HORSEPOWER VOLT PSI CFM PART NUMBER
NxB18 25 230 100 114 FNB18C1X3HXXX
NxB18 25 460 FNB18C1X4HXXX
NxB18 25 230 125 100 FNB18C1X3JXXX
NxB18 25 460 FNB18C1X4JXXX
NxB18 25 230 150 92 FNB18C1X3KXXX
NxB18 25 460 FNB18C1X4KXXX
NxB18 25 230 175 84 FNB18C1X3LXXX
NxB18 25 460 FNB18C1X4LXXX
NxB22 30 230 100 134 FNB22C1X3HXXX
NxB22 30 460 FNB22C1X4HXXX
NxB22 30 230 125 116 FNB22C1X3JXXX
NxB22 30 460 FNB22C1X4JXXX
NxB22 30 230 150 109 FNB22C1X3KXXX
NxB22 30 460 FNB22C1X4KXXX
NxB22 30 230 175 95 FNB22C1X3LXXX
NxB22 30 460 FNB22C1X4LXXX
NxB18 25 230 100 114 FNB18CXX3HXXX
NxB18 25 460 FNB18CXX4HXXX
NxB18 25 230 125 100 FNB18CXX3JXXX
NxB18 25 460 FNB18CXX4JXXX
NxB18 25 230 150 92 FNB18CXX3KXXX
NxB18 25 460 FNB18CXX4KXXX
NxB18 25 230 175 84 FNB18CXX3LXXX
NxB18 25 460 FNB18CXX4LXXX
NxB22 30 230 100 134 FNB22CXX3HXXX
NxB22 30 460 FNB22CXX4HXXX
NxB22 30 230 125 116 FNB22CXX3JXXX
NxB22 30 460 FNB22CXX4JXXX
NxB22 30 230 150 109 FNB22CXX3KXXX
NxB22 30 460 FNB22CXX4KXXX
NxB22 30 230 175 95 FNB22CXX3LXXX
NxB22 30 460 FNB22CXX4LXXX
NxB30 40 230 100 196 FNB30DXX3HXXX
NxB30 40 460 FNB30DXX4HXXX
NxB30 40 230 125 173 FNB30DXX3JXXX
NxB30 40 460 FNB30DXX4JXXX
NxB30 40 230 150 163 FNB30DXX3KXXX
NxB30 40 460 FNB30DXX4KXXX
NxB30 40 230 175 149 FNB30DXX3LXXX
NxB30 40 460 FNB30DXX4LXXX
NxB37 50 230 100 234 FNB37DXX3HXXX
NxB37 50 460 FNB37DXX4HXXX
NxB37 50 230 125 203 FNB37DXX3JXXX
NxB37 50 460 FNB37DXX4JXXX
NxB37 50 230 150 193 FNB37DXX3KXXX
NxB37 50 460 FNB37DXX4KXXX
NxB37 50 230 175 180 FNB37DXX3LXXX
NxB37 50 460 FNB37DXX4LXXX
NxD45 60 230 FND45EXX3HXPC
NxD45 60 460 100 288 FND45EXX4HXPC
NxD45 60 575 FND45EXX8HXPC
NxD45 60 230 FND45EXX3JXPC
NxD45 60 460 125 263 FND45EXX4JXPC
NxD45 60 575 FND45EXX8JXPC
NxD45 60 230 FND45EXX3KXPC
NxD45 60 460 150 246 FND45EXX4KXPC
NxD45 60 575 FND45EXX8KXPC
NxD45 60 230 FND45EXX3LXPC
NxD45 60 460 175 223 FND45EXX4LXPC
NxD45 60 575 FND45EXX8LXPC
NxD55 75 230 FND55EXX3HXPC
NxD55 75 460 100 356 FND55EXX4HXPC
NxD55 75 575 FND55EXX8HXPC
NxD55 75 230 FND55EXX3JXPC
NxD55 75 460 125 324 FND55EXX4JXPC
NxD55 75 575 FND55EXX8JXPC
NxD55 75 230 FND55EXX3KXPC
NxD55 75 460 150 293 FND55EXX4KXPC
NxD55 75 575 FND55EXX8KXPC
NxD55 75 230 FND55EXX3LXPC
NxD55 75 460 175 270 FND55EXX4LXPC
NxD55 75 575 FND55EXX8LXPC





AIR COMRPESSOR SERVICE









GAS AIR COMPRESSORS




214-428-2868





AIR COMPRESSOR SERVICE

















214-428-2868






























214-428-2868















AIR COMPRESSOR SERVICE

COMPRESSOR PARTS

CALL FOR PRICES:

BALDOR MOTORS

WEG MOTORS

MARATHON MOTORS

214-428-2868

WE DROP SHIP ANYWHERE WITHIN THE USA.

CURTIS PUMPS

SERVICE KITS

CURTIS ML SERIES COMPRESSOR PARTS

AIR COMPRESSOR PUMP REPAIR

AIR COMPRESSOR MOTOR REPAIR

AIR COMPRESSOR DRYER

AIR COMPRESSOR DRYER SERVICE


214-428-2868

AIR COMPRESSOR PARTS

AIR COMPRESSOR OIL





CALL H&k PUMP FOR SALES AND SERVICE.  WE REBUILD ALL CURTIS COMPRESSOR PUMPS.  IN ADDITION, WE TYPICALLY KEEP MOST OF THE PARTS IN STOCK EITHER INSIDE OUR WAREHOUSE OR AT THE CORPORATE OFFICE.  WE DROP SHIP DIRECTLY TO YOU.

214-428-2868









CURTIS CHECK VALVES, CURTIS PISTONS, CURTIS GASKETS, CURTIS VALVE PLATES, CURTIS C98 RODS, CURTIS HOSES, CURTIS BELTS, CURTIS PISTON RINGS, CURTIS PUMPS, CURTIS COMPRESSOR MOTORS; CURTIS MAG STARTERS, CURTIS PRESSURE SWITCHES; CURTIS 5HP – 350HP COMPRESSORS; FSCURTIS REPLACMENT PARTS; OEM REPLACEMENT PARTS CALL: 214-428-2868



AIR COMPRESSOR MOTORS

AIR COMPRESSOR PRESSURE SWITCHES

AIR COMPRESSOR CONTACTORS

AIR COMPRESSOR BELTS

AIR COMPRESSOR HOSES

AIR COMPRESSOR PUMPS

AIR COMPRESSOR GASKETS

AIR COMPRESSOR VALVES

AIR COMPRESSOR PISTONS

AIR COMPRESSOR RODS

AIR COMPRESSOR SERVICE

AIR COMPRESSOR PARTS

AIR COMPRESSOR CHECK VALVES

AIR COMPRESSOR SAFETY VALVES

AIR COMPRESSOR PISTON RINGS

AIR COMPRESSOR OIL

AIR COMPRESSOR FILTERS

AIR COMRPESSOR SEPARATORS



CALL: 214-428-2868 FOR PRICES:

Visit: www.hkaircompressors.com









CALL H&k PUMP FOR SALES AND SERVICE.  WE REBUILD ALL CURTIS COMPRESSOR PUMPS.  IN ADDITION, WE TYPICALLY KEEP MOST OF THE PARTS IN STOCK EITHER INSIDE OUR WAREHOUSE OR AT THE CORPORATE OFFICE.  WE DROP SHIP DIRECTLY TO YOU.

214-428-2868




Horizontal Vertical CFM @
Model HP Part No. Part No. Pump Tank Size Voltage 175PSI
CA5+ 5 FCA05E57H8S-A2L1XX FCA05E57V8S-A2L1XX E57 80 1/60/230V 18.5
CA5+ 5 FCA05E57H8S-A9L1XX FCA05E57V8S-A9L1XX E57 80 3/60/200-208V 18.5
CA5+ 5 FCA05E57H8S-A3L1XX FCA05E57V8S-A3L1XX E57 80 3/60/230V 18.5
CA5+ 5 FCA05E57H8S-A4L1XX FCA05E57V8S-A4L1XX E57 80 3/60/460V 18.5
CA7.5 7.5 FCA07E57H8S-A2L1XX FCA07E57V8S-A2L1XX E57 80 1/60/230V 23.2
CA7.5 7.5 FCA07E57H8S-A9L1XX FCA07E57V8S-A9L1XX E57 80 3/60/200-208V 23.2
CA7.5 7.5 FCA07E57H8S-A3L1XX FCA07E57V8S-A3L1XX E57 80 3/60/230V 23.2
CA7.5 7.5 FCA07E57H8S-A4L1XX FCA07E57V8S-A4L1XX E57 80 3/60/460V 23.2
CA10 10 FCA10E71H1S-A9L1XX --- E71 120 3/60/200-208V 34.2
CA10 10 FCA10E71H1S-A3L1XX --- E71 120 3/60/230V 34.2
CA10 10 FCA10E71H1S-A4L1XX --- E71 120 3/60/460V 34.2
CA10 10 --- FCA10E71V1S-A9L1XX E71 120 3/60/200-208V 34.2
CA10 10 --- FCA10E71V1S-A3L1XX E71 120 3/60/230V 34.2
CA10 10 --- FCA10E71V1S-A4L1XX E71 120 3/60/460V 34.2
CA15 15 FCA15E15H1S-A9L1XX --- E15 120 3/60/200-208V 42.6
CA15 15 FCA15E15H1S-A3L1XX E15 120 3/60/230V 42.6
CA15 15 FCA15E15H1S-A4L1XX --- E15 120 3/60/460V 42.6
CA5+ 5 FCA05E57D1S-A2L1XX E57 120 1/60/230V 37
CA5+ 5 FCA05E57D1S-A9L1XX E57 120 3/60/200-208V 37
CA5+ 5 FCA05E57D1S-A3L1XX E57 120 3/60/230V 37
CA5+ 5 FCA05E57D1S-A4L1XX E57 120 3/60/460V 37
CA7.5 7.5 FCA07E57D1S-A2L1XX E57 120 1/60/230V 46.4
CA7.5 7.5 FCA07E57D1S-A9L1XX E57 120 3/60/200-208V 46.4
CA7.5 7.5 FCA07E57D1S-A3L1XX E57 120 3/60/230V 46.4
CA7.5 7.5 FCA07E57D1S-A4L1XX E57 120 3/60/460V 46.4
CA10 10 FCA10E71D1S-A9L1XX E71 120 3/60/200-208V 68.4
CA10 10 FCA10E71D1S-A3L1XX E71 120 3/60/230V 68.4
CA10 10 FCA10E71D1S-A4L1XX E71 120 3/60/460V 68.4
CA5+ 5 FCA05E57H8U-A2L1XX FCA05E57V8U-A2L1XX E57 80 1/60/230V 18.5
CA5+ 5 FCA05E57H8U-A9L1XX FCA05E57V8U-A9L1XX E57 80 3/60/200-208V 18.5
CA5+ 5 FCA05E57H8U-A3L1XX FCA05E57V8U-A3L1XX E57 80 3/60/230V 18.5
CA5+ 5 FCA05E57H8U-A4L1XX FCA05E57V8U-A4L1XX E57 80 3/60/460V 18.5
CA7.5 7.5 FCA07E57H8U-A2L1XX FCA07E57V8U-A2L1XX E57 80 1/60/230V 23.2
CA7.5 7.5 FCA07E57H8U-A9L1XX FCA07E57V8U-A9L1XX E57 80 3/60/200-208V 23.2
CA7.5 7.5 FCA07E57H8U-A3L1XX FCA07E57V8U-A3L1XX E57 80 3/60/230V 23.2
CA7.5 7.5 FCA07E57H8U-A4L1XX FCA07E57V8U-A4L1XX E57 80 3/60/460V 23.2
CA10 10 FCA10E71H1U-D9L1XX --- E71 120 3/60/200-208V 34.2
CA10 10 FCA10E71H1U-D3L1XX --- E71 120 3/60/230V 34.2
CA10 10 FCA10E71H1U-D4L1XX --- E71 120 3/60/460V 34.2
CA10 10 --- FCA10E71V1U-D9L1XX E71 120 3/60/200-208V 34.2
CA10 10 --- FCA10E71V1U-D3L1XX E71 120 3/60/230V 34.2
CA10 10 --- FCA10E71V1U-D4L1XX E71 120 3/60/460V 34.2
CA15 15 FCA15E15H1U-D9L1XX --- E15 120 3/60/200-208V 42.6
CA15 15 FCA15E15H1U-D3L1XX --- E15 120 3/60/230V 42.6
CA15 15 FCA15E15H1U-D4L1XX --- E15 120 3/60/460V 42.6
CA5+ 5 FCA05E57D1U-A2L1XX E57 120 1/60/230V 37
CA5+ 5 FCA05E57D1U-A9L1XX E57 120 3/60/200-208V 37
CA5+ 5 FCA05E57D1U-A3L1XX E57 120 3/60/230V 37
CA5+ 5 FCA05E57D1U-A4L1XX E57 120 3/60/460V 37
CA7.5 7.5 FCA07E57D1U-A2L1XX E57 120 1/60/230V 46.4
CA7.5 7.5 FCA07E57D1U-A9L1XX E57 120 3/60/200-208V 46.4
CA7.5 7.5 FCA07E57D1U-A3L1XX E57 120 3/60/230V 46.4
CA7.5 7.5 FCA07E57D1U-A4L1XX E57 120 3/60/460V 46.4
CA10 10 FCA10E71D1U-A9L1XX E71 120 3/60/200-208V 68.4
CA10 10 FCA10E71D1U-A3L1XX E71 120 3/60/230V 68.4
CA10 10 FCA10E71D1U-A4L1XX E71 120 3/60/460V 68.4










WWW.HKAIRCOMPRESSORS.COM








HEAVY DUTY INDUSTRIAL PISTON AIR COMPRESSORS



Model HP Part No. Pump Voltage CFM
ML5 5 FML05D96BXS-A2L1XX D96 1/60/230V 19.1
ML5 5 FML05D96BXS-A9L1XX D96 3/60/200-208V 19.1
ML5 5 FML05D96BXS-A3L1XX D96 3/60/230V 19.1
ML5 5 FML05D96BXS-A4L1XX D96 3/60/460V 19.1
ML7.5 7.5 FML07C79BXS-A2L1XX C79 1/60/230V 28.7
ML7.5 7.5 FML07C79BXS-A9L1XX C79 3/60/200-208V 28.7
ML7.5 7.5 FML07C79BXS-A3L1XX C79 3/60/230V 28.7
ML7.5 7.5 FML07C79BXS-A4L1XX C79 3/60/460V 28.7
ML10 10 FML10D97BXS-A9L1XX D97 3/60/200-208V 39.8
ML10 10 FML10D97BXS-A3L1XX D97 3/60/230V 39.8
ML10 10 FML10D97BXS-A4L1XX D97 3/60/460V 39.8
ML15 15 FML15D97BXS-A9L1XX D97 3/60/200-208V 49.5
ML15 15 FML15D97BXS-A3L1XX D97 3/60/230V 49.5
ML15 15 FML15D97BXS-A4L1XX D97 3/60/460V 49.5
ML15+ 15 FML15C89BXS-A9L1XX C89 3/60/200-208V 55.8
ML15+ 15 FML15C89BXS-A3L1XX C89 3/60/230V 55.8
ML15+ 15 FML15C89BXS-A4L1XX C89 3/60/460V 55.8
ML20+ 20 FML20C98BXS-A9L1XX C98 3/60/200-208V 79.3
ML20+ 20 FML20C98BXS-A3L1XX C98 3/60/230V 79.3
ML20+ 20 FML20C98BXS-A4L1XX C98 3/60/460V 79.3
ML25 25 FML25C98BXS-A9L1XX C98 3/60/200-208V 82.4
ML25 25 FML25C98BXS-A3L1XX C98 3/60/230V 82.4
ML25 25 FML25C98BXS-A4L1XX C98 3/60/460V 82.4
ML30 30 FML30C98BXS-A9L1XX C98 3/60/200-208V 102.2
ML30 30 FML30C98BXS-A3L1XX C98 3/60/230V 102.2
ML30 30 FML30C98BXS-A4L1XX C98 3/60/460V 102.2
































































































































































































































No comments:

Post a Comment
