The Rotary Screw Air Compressor
The rotary screw air compressor produces an ongoing movement to generate power.For certain heavy-duty industrial operations, or a facility that needs to keep running their compressor 24/7 365 days a year, a piston compressor is considered insufficient. In order to get the pressure intensity needed for complex pneumatic and other high-powered tools, you will need to consider buying a rotary screw air compressor.






In a rotary screw compressor, air is compressed with a meshing pair of rotors. As the screws move in rotation, fluids gets sucked in, compressed and ejected.






So, how does an oil injected rotary screw compressor work?

AIR

The outside air is sucked in by the screw element (air-end) through the air inlet filter. The inlet filter makes sure that all the dust and dirt stays outside.








Load and unload control

Before the air enters the screw element, it passed the inlet valve or unloader valve. This valve opens and closes the air supply to the screw element.

When it’s open, the compressor is in ‘loaded’ condition:
When the valve is closed, is shuts off the air supply to the compressor element: the motor and screw element are turning, but the compressor is not sucking any air in and is not pumping any air to the system.




H&K PUMP





WHAT DOES THE screw compressor element DO?


When the inlet/unloader valve is open, the air enters the compressor screw element.
The screw element works like a pump and it compressed the air. During this process, oil is injected in the element. The oil is there to cool the air, as the air gets very hot during compression.






Compressed air/oil mixture


This mixture leaves the screw element through a one-way valve. This valve makes sure that the oil cannot flow back into the compressor element through the exit pipe.










WHAT IS THE PURPOSE OF THE OIL SEPARATOR?

It's job is to basically separate the oil and the air through the separator tank. Most of the oil is separated from the compressed air by centrifugal force . The remaining oil is separated by the separator element which looks exactly like a big filter.


The air with oil flows through the separator element and separates the oil from the compressed air. The separated oil is collected at the bottom of the separator and is removed by the scavenge line. It sucks the collected oil back to the compressor element.










WHAT IS THE MINIMUM PRESSURE VALVE?


The minimum pressure valve is a spring-loaded valve that opens at a certain pressure, about 2.5 bar. The minimum pressure valve makes sure that there is always a minimum pressure inside the compressor



www.hkaircompressors.com



The after cooler

The compressed air is still very hot, consequently the compressed air is now cooled by the after cooler before it leaves the compressor. The air temperature after the cooler is around 25 – 40 degrees Celsius.
Because of the cooling down of the air, a lot of water vapor has condensed against the inside of the after cooler. This water is carried with the compressed air towards the air outlet of the compressor.
Moisture trap

The condenstate trap (moisture trap) basically separates the water from the compressed air. The water is drained through a small hose.
Oil flow

The oil is cooled by the oil cooler. The amount of cooling is controlled by a thermostatic valve. If the oil is still cold, the oil cooler is completely by-passed. If the oil is very hot, all the oil is led through the oil cooler.

The Oil filter

Finally, the oil flows through the oil filter. The oil filters removes all the dirt and dust that has collected in the oil.

















Call: 214-428-2868











Model HP VOLT  PSI CFM Part Number
NxB30 40 230 100 196 FNB30DXX3HXXX
NxB30 40 460 FNB30DXX4HXXX
NxB30 40 230 125 173 FNB30DXX3JXXX
NxB30 40 460 FNB30DXX4JXXX
NxB30 40 230 150 163 FNB30DXX3KXXX
NxB30 40 460 FNB30DXX4KXXX
NxB30 40 230 175 149 FNB30DXX3LXXX
NxB30 40 460 FNB30DXX4LXXX
NxB37 50 230 100 234 FNB37DXX3HXXX
NxB37 50 460 FNB37DXX4HXXX
NxB37 50 230 125 203 FNB37DXX3JXXX
NxB37 50 460 FNB37DXX4JXXX
NxB37 50 230 150 193 FNB37DXX3KXXX
NxB37 50 460 FNB37DXX4KXXX
NxB37 50 230 175 180 FNB37DXX3LXXX
NxB37 50 460 FNB37DXX4LXXX
NxB30 40 230 100 196 FNB30DXD3HXXX
NxB30 40 460 FNB30DXD4HXXX
NxB30 40 230 125 173 FNB30DXD3JXXX
NxB30 40 460 FNB30DXD4JXXX
NxB30 40 230 150 163 FNB30DXD3KXXX
NxB30 40 460 FNB30DXD4KXXX
NxB30 40 230 175 149 FNB30DXD3LXXX
NxB30 40 460 FNB30EXD4LXXX
NxB37 50 230 100 234 FNB37DXD3HXXX
NxB37 50 460 FNB37DXD4HXXX
NxB37 50 230 125 203 FNB37DXD3JXXX
NxB37 50 460 FNB37DXD4JXXX
NxB37 50 230 150 193 FNB37DXD3KXXX
NxB37 50 460 FNB37DXD4KXXX
NxB37 50 230 175 180 FNB37DXD3LXXX
NxB37 50 460 FNB37DXD4LXXX








THERE ARE A LOT OF AIR COMPRESSOR BRANDS IN THE WORLD BUT VERY FEW AIR COMPRESSOR SERVICE CENTERS IN DALLAS, FORT WORTH AND SURROUNDING AREAS.  IF YOU ARE LOOKING FOR INDUSTRIAL AIR COMPRESSORS FOR YOUR SHOP, FACTORY, MANUFACTURING PLANT, THEN CALL US AT: 214-428-2868

WE HAVE BEEN IN BUSINESS FOR 50 YEARS.  WE KNOW HOW TO SERVICE, MAINTAIN AND REPAIR ALMOST ALL BRANDS OF INDUSTRIAL PISTON AND ROTARY SCREW AIR COMPRESSORS.

WWW.HKAIRCOMPRESSORS.COM



CHAMPION PARTS

INGERSOLL RAND PARTS

QUINCY PARTS

CURTIS PARTS

ATLAS COPCO PARTS

JENNY PARTS

GARDNER DENVER PARTS

PISTON COMPRESSOR PARTS

ROTARY SCREW PARTS








Call: 214-428-2868






















Posted by at 1 comment:
Labels: , , , , ,

Dallas air compressor service, Fort Worth air compressor repair, Dallas air compressor pump service



DALLAS, FORT WORTH AIR COMPRESSOR SALES AND SERVICE





214-428-2868


Air Compressor Sales, Repairs, and Services

When air compressors at your facility begin to malfunction, you’re likely to encounter a lot of problems. Faulty machines can halt your operations and cost you thousands of dollars in lost productivity and labor. Prevent future complications when you turn to H&K Pump in Dallas, Texas!  We fix air compressors and pumps for all brands on the market today.

Services and Parts


Our company services all air compressors of all brands. We diagnose and resolve any problem right away for your convenience. Our team is also experienced in preventive maintenance services.

Some of our clients include companies in the aerospace, mining, and forestry industries, as well as the following:
  • Food Manufacturers
  • Industrial Plants
  • Automotive Facilities
  • Paint and Body Shops
  • Machine Shops
  • Metal Manufacturers
  • Dry Cleaners
  • Food Factories
  • Paper Mills
  • 18-Wheelers


             air compressor service


  • Concrete Plants
  • Recycling Plants
  • Scrap Yards
  • CNC Machine Companies
  • Dallas Independent School District (DISD)
  • Dallas County Fire Department
  • Jails
  • Fire Control Systems
  • AC Units
  • Packaging Companies

www.hkaircompressors.com

We are also the distributor of FS-Curtis and Champion products in Dallas and surrounding areas. In addition, we have more than 75,000 different SKU numbers (parts) in inventory and can ship anywhere in the Continental USA.







For the past 45 years, H&K Pump has serviced thousands of happy and loyal customers.  Not only do we service and repair air compressors, pumps, motors, refrigerated air dryers, valve replacement, bearings, crankshafts, tanks, flywheels, etc., but we also stock pressure switches, check valves, safety valves, gaskets, copper, filters, oil, etc. etc.  If you need it, we have it in stock or can order it from our warehouse.


www.hkaircompressors.com


We take pride in knowing how to properly diagnose and fix:
Ingersoll Rand air compressors and pumps
Quincy air compressors and pumps
Le Roi air compressors and pumps
Jenny air compressors and pumps
Champion air compressors and pumps
Emglo air compressors and pumps
Norm-Air air compressors and pumps
















































Posted by at 1 comment:
Labels: , , , , , ,

air compressor pumps, how to fix an air compressor pump, air compressor pump service







AIR COMPRESSOR PUMP SERVICE AND REPAIR

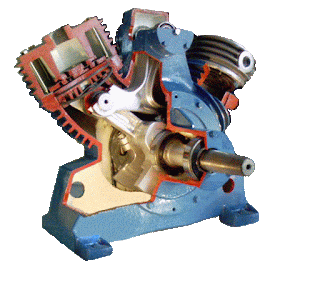

Like a small internal combustion engine (SIMILAR TO YOUR CAR), a conventional piston compressor has a crankshaft, a connecting rod and piston, a cylinder and a valve head. The crankshaft is driven by either an electric motor or a gas engine. While there are small models that are comprised of just the pump and motor, most compressors have an air tank to hold a quantity of air within a preset pressure range. This compressed air in the tank drives the air tools, and the motor turns on and off automatically to maintain pressure in the tank.


air compressor pump service



At the top of the cylinder, you'll find a valve head that holds the inlet and discharge valves. (Don't worry about knowing which is which, let the experts at H&K PUMP check it out and give you an estimate to either fix it or replace it).   Now, as the piston moves down, a vacuum is created above it. This allows outside air at atmospheric pressure to push open the inlet valve and fill the area above the piston. As the piston moves up, the air above it compresses, holds the inlet valve shut and pushes the discharge valve open. The air moves from the discharge port to the tank. With each stroke, more air enters the tank and the pressure rises.




WHAT DOES IT TAKE TO REBUILD AN AIR COMPRESSOR PUMP?

Rebuilding an air compressor pump takes a lot of time, a lot of tools, and a lot of parts.  To properly break down an air compressor pump and diagnose the problem may take anywhere from 1 to 2 hours of time.  A myriad of issues may come to your attention like: the bearings are busted; or the crankshaft front housing seal is leaking; or the piston rods have dug into the crankshaft and won't move freely.  Take a look at the pictures below and decide if you want to try this yourself or if you want the experts at H&K to repair it for you.






Remember, if you decide to try it yourself, here are just a few tools that you will need:

1. impact tools, wrenches and sockets, hammers, lock ring pliers, punches,  benches, and screwdrivers

2. an air compressor

3. a vice

4. a press

5. a torch

6. wire

7. a test stand

8. oil

9. pressure tester

10. grease/ lubricant

in total, you should have around $7K - 10K dollars just in tools and equipment in order to disassemble and rebuild your air compressor pump...





WHAT DOES IT COST TO REBUILD MY PUMP?

The cost to rebuild a pump varies from one machine to another.  It typically takes anywhere from 1 to 2 hours to completely break down the machine and determine what the issues are.  To do it right, you should remove and replace your bearings; replace all the seals; replace all the gaskets; replace all the rings on both the high and low pressure pistons; replace the valves along with the valve gaskets; hone the cylinders and change out the oil.  This process with removing and pressing in the bearings and cleaning up the machine; reattaching all the lines and testing the machine on a test stand can and will take anywhere from 5-8 hours depending on the size and complexity of your pump.  The average cost to completely rebuild a 5-10 HP pump is anywhere from $500 - $1,500 dollars and will take between 2-5 business days to rebuild.  If done correctly, it should last you for decades to come.








www.hkaircompressors.com
